• Pumps: RV360, RV520, RVC360, RVC210
  • Fan cooled
  • Side-mounted oil tank (RVC pumps)
  • Built-in manual vacuum-pressure diverter
  • Two (2) vane inspection ports
  • Suitable for heavy-duty operation
Price: $4,259.40
$4,259.40
In Stock
    Pumps:


    Update price
    Quantity:
    Item #: RV-360/CCWNF
    Availability: In Stock
    Usually ships In 1-2 Business Days

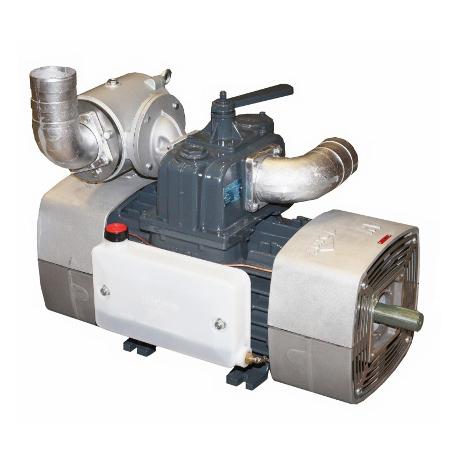

    The RV series (RV360, RV520) and RVC series (RVC360, RVC210) vacuum pumps are cooled by high efficiency contraposed fans. The airflow reduces the temperature of the internal parts normally subjected to wear. Suitable for heavy-duty operation..

    Summary Pump Information
    • RV360: 360 max CFM, 30 max PSI, 16 HP
    • RV520: 520 max CFM, 30 max PSI, 32 HP
    • RVC360: 360 max CFM, 30 max PSI, 32 HP
    • RVC210: 212 max CFM, 30 max PSI, 10 HP


      RV360 Specifications

      • RPM Range: 1100-1300
      • Max Vacuum 28”: / 92%
      • CFM at Free Air: 360
      • CFM at 18”: 332
      • Max Intermittent Pressure: 30 PSI
      • Horsepower: 16
      • Noise at 18”: 76 dB
      • Oil Tank Capacity: 1 gallon
      • Net Weight: 430 lbs
      • Recommended Oil: ISO 150
      • 40mm Smooth Shaft

      RV520 Specifications

      • RPM Range: 1100-1300
      • Max Vacuum 28”: / 92%
      • CFM at Free Air: 520
      • CFM at 18”: 466
      • Max Intermittent Pressure: 30 PSI
      • Horsepower: 32
      • Noise at 18”: 76 dB
      • Oil Tank Capacity: 1 gallon
      • Net Weight: 540 lbs
      • Recommended Oil: ISO 150
      • 40mm Smooth Shaft

      RVC360 Specifications

      • RPM Range: 1100-1300
      • Max Vacuum: 28” / 92%
      • CFM at Free Air: 360
      • CFM at 18”: 332
      • Max Intermittent Pressure: 30 PSI
      • Horsepower: 16
      • Noise at 18”: 76 dB
      • Oil Tank Capacity: 1 gallon
      • Net Weight: 470 lbs
      • Recommended Oil: ISO 150
      • 40mm Smooth Shaft

      RVC210 Specifications

      • RPM Range: 1100-1400
      • Max Vacuum: 28” / 92%
      • CFM at Free Air: 212
      • CFM at 18”: 187
      • Max Intermittent Pressure: 30 PSI
      • Horsepower: 10
      • Noise at 18”: 72 dB
      • Oil Tank Capacity: 2.6 Qt
      • Net Weight: 185 lbs
      • Recommended Oil: ISO 150
