Jurop R260 RV360 LC420 Vacuum Pump Packages w Muffler and Secondary

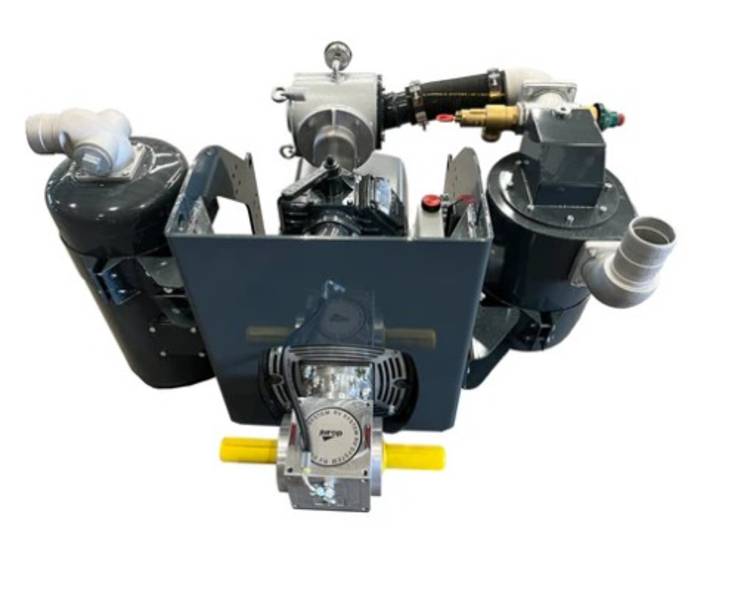

Jurop Muffler Pack package is a basic vacuum truck pump setup that includes the pump, pump stand, 3-shaft gearbox, auto-align bracket, secondary, and muffler.

There are Muffler Pack (no filter) options for the R260, LC420, and RV360 vacuum pumps

Muffler Pack pump setups are used for a wide range of applications that include those in the oilfield, agricultural, industrial, marine and building industry, civil and environment branches, and other environmental field services.

R260 Pump Specs

• RPM Range: 900-1200
• Max Vacuum: 27.6” / 92%
• Max Continuous Vacuum: 18” / 60%
• CFM at Free Air: 363
• CFM at 18”: 304
• Max Pressure 25 PSI
• Horsepower: 18
• Noise @ 18”: 84 dB
• Net Weight: 397 lbs
• Oil Tank Cap.: 2.44 qt
• Rec. Oil: ISO 150
• 1 3/8” Smooth Shaft
• Two 3” Swivel Elbows

LC420 Pump Specs

• RPM Range: 900-1300
• Max Vacuum: 27.6″ / 92%
• CFM @ Free Air: 230
• CFM @ 18″: 205
• Max Pressure: 21 PSI
• Horsepower: 9
• Noise @ 18″: 77 dB
• Oil Tank Capacity: 2.44 quarts
• Net Weight: 225 lbs
• Recommended Oil: ISO 150
• 1 3/8 inch Smooth Shaft
• Two 2″ or 3″ Swivel Elbows (specify when ordering)

RV360 Pump Specs

• RPM Range 1100-1300
• Max Vacuum 28” / 92%
• CFM at Free Air 360
• CFM at 18” 332
• Max Intermittent Pressure 30 PSI
• Horsepower 16
• Noise at 18” 76 dB
• Oil Tank Capacity 1 gallon
• Net Weight 430 lbs
• Recommended Oil ISO 150
• 40mm Smooth Shaft
