Gardner Denver MH3-C2 Slimline Hydraulic Cooler

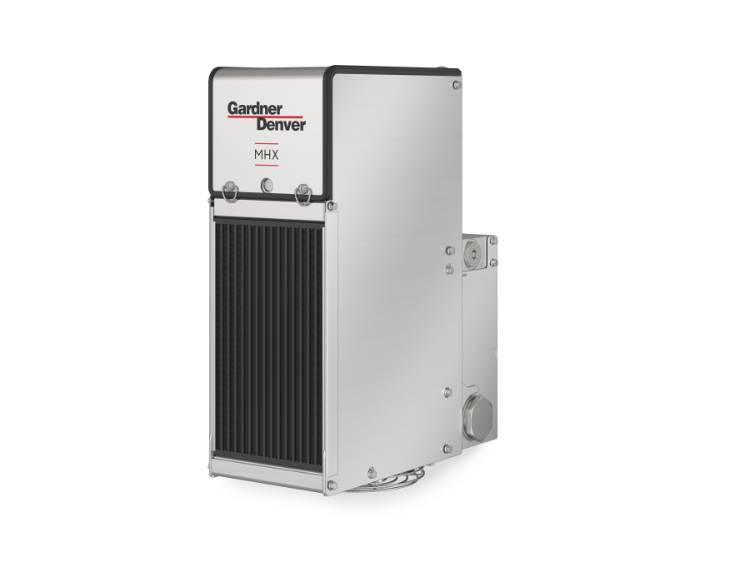

Gardner Denver MHX Slimline Hydrapak Hydraulic Oil Cooler

Item #: MXH
Price: $3,929.56
    Points to Purchase:392956
    The product is in stock Availability: Check Status
    Usually ships In 1-2 Business Days

    Quantity:
    Gardner Denver

    About This Item

    • Gardner Denver MHX (discontinued the MH3 & MH-C2) Slimline hydraulic oil cooler, 30 max GPM
    • Heavy-duty stainless-steel mainframe for durability and long life
    • 3.4-gallon oil reservoir w integral diffuser to eliminate foaming
    • Highly efficient, heavy duty oil cooler for maximum reliability
    • Factory set hydraulic motor driven fan
    • Anodized aluminum manifold block - protects against over pressurization
    • Manifold block incorporates the RV, flow CV, filter bypass, & filter
    • Warranty - 12 months from installation or 18 months from ship date
    Born from the family known as the "original" truck mounted hydraulic oil cooler, the new Gardner Denver MHX (30 max GPM) Hydrapak coolers are easy to install, with low / virtually no maintenance, and weighs hundreds of pounds less than conventional reservoir type systems. They are both compact, lightweight and highly efficient hydraulic coolers for the operation of high horsepower and high flow mobile hydraulic drive systems.

    The MHX has a patented slim design, measuring only 8.5 inches wide, it is ideal for installations where space on the vehicle is at a premium. The MHX can also be directly mounted to a chassis rail with mounting brackets required, reducing the weight of the installation further. There is a removable front panel that provides easy access to the oil filter and oil fill point for easy maintenance.

    MHX wet-kit package options that include MH cooler, hydraulic pump, and PTO are also available.

    MHX Hydrapak® Hydraulic Drive Cooling System

    • Flow rate to 30 max GPM • Pressure rated to 3500 psi • 3.4 gallon reservoir • Stainless steel construction • Weight: 99 lbs dry, 126 lbs wet • High Pressure: 12 (¾”) JICM • Low Pressure Return: 16 (1”) JICM • Suction: –24 (1½”) Code 61 split flange with variety of hose barb options


    • MHX cooler and mount bolts
