Gardner Denver MHX MH3 Hydrapak Hydraulic Oil Cooler

Item #: MH-X
Price: $3,929.56
    Points to Purchase:392956
    The product is in stock Availability: Check Status
    Usually ships In 1-2 Business Days
    Hydraulic:

    Hydraulic equipment



    Update price
    Quantity:
    Gardner Denver

    About This Item

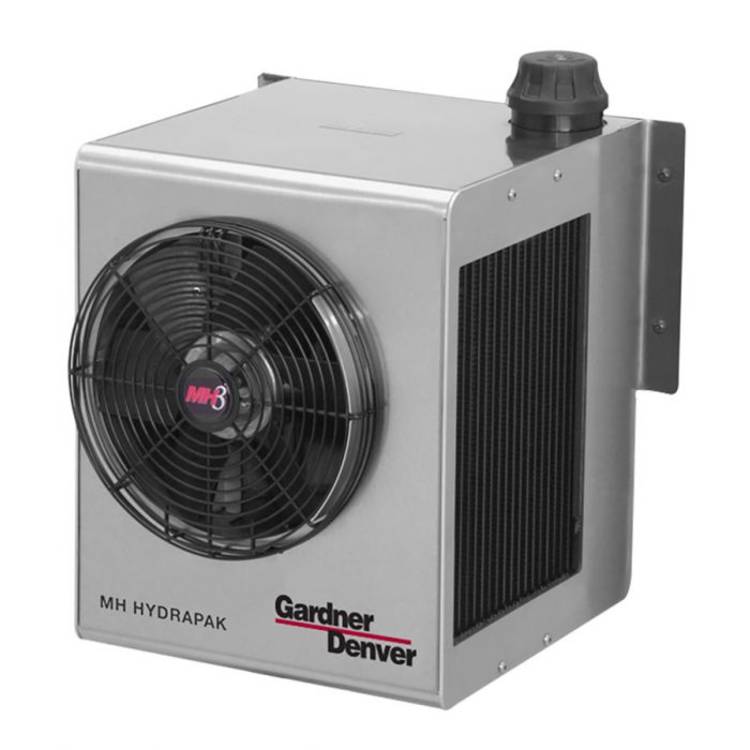

    • Gardner Denver MHX hydraulic oil coolers
    • Heavy duty stainless steel mainframe for durability and long life
    • 4.4 gallon oil reservoir w integral diffuser to eliminate foaming
    • Highly efficient, heavy duty oil cooler for maximum reliability
    • Factory set hydraulic motor driven fan
    • Anodized aluminum manifold block - protects against over pressurization
    • Manifold block incorporates the RV, flow CV, filter bypass, & filter
    • Warranty - 12 months from installation or 18 months from ship date
    Knowns as the "original" truck mounted hydraulic oil cooler, the popular Gardner Denver MH-X (30 max GPM) Hydrapak coolers are easy to install, with low / virtually no maintenance, and weighs hundreds of pounds less than conventional reservoir type systems. They are both compact, lightweight and highly efficient hydraulic coolers for the operation of high horsepower and high flow mobile hydraulic drive systems.

    MH3 and MH5 wet-kit package options that include MH cooler, hydraulic pump, and PTO are also available.

    MHX Hydrapak® Hydraulic Drive Cooling System

    • Flow rate to 30 gpm • Pressure rated to 3500 psi • 4.4 gallon reservoir • Stainless steel construction • Weight: 49 lbs dry, 126 lbs wet • High Pressure: 12 (¾”) JICM • Low Pressure Return: 16 (1”) JICM • Suction: –24 (1½”) Code 61 split flange with variety of hose barb options


    • MH3 or MH5 cooler and mount bolts
