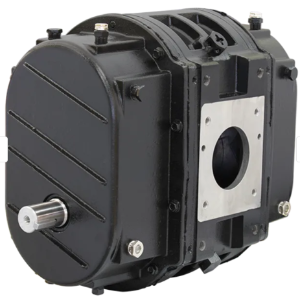

The The Eurus ZCS824 Vacuum Truck Blower is a heavy-duty blower designed with integral-shaft, ductile iron impellers. The blower is center med for rotation in either direction. The precisely aligned gears and bearings offer consistent and superior performance at an affordable price.
Rugged, detachable steel mounting feet allow configuration in either vertical or horizontal to meet installation requirements. The headplates, gear cover, end cover and rigid, one-piece casing are grey iron. Carburized and ground alloy steel spur ming gears are taper mounted on the shafts, secured with a locknut. Cylindrical roller bearings are used on the drive end with ball bearings on the gear end. Piston rings reduce air leakage through the sha openings in the head plates, and lip-type oil seals prevent lubricant from entering the air chamber and provides oil free compression.
FEATURES
- Center-med for rotation in either direction
- Alloy steel ming gears
- Cylindrical roller bearings (Cylindrical roller bearings are used on the drive end with ball bearings on the gear end)
- Piston ring air seals
- Lip-type oil seals
- Splash oil lubrication
- High volumetric efficiency
- Horizontal and vertical configurations available
