APSCO ARC-30 ARC-45 ARC-60 series Hydraulic Wet-Kits

Item #: ARCWet-30
Price: $4,009.16
    The product is in stock Availability: Check Status
    Usually ships In 1-2 Business Days
    Hydraulic:

    Hydraulic equipment



    Update price
    APSCO Power

    About This Item

    • Basic ARC cooler wet-kit incl' cooler, Muncie TG8 PTO, Pump (optional Directional CV is available)
    • Superior Heat Rejection – Excessive heat in your system reduces the efficiency of your system and the life of your hydraulic oil.
    • Compact Design – More heat rejection per inch of frame space than alternative products.
    • Low Maintenance – Integrated system design keeps replaceable/service components to a minimum
    • Easily Serviced – All items can be accessed without removing the unit from the equipment.

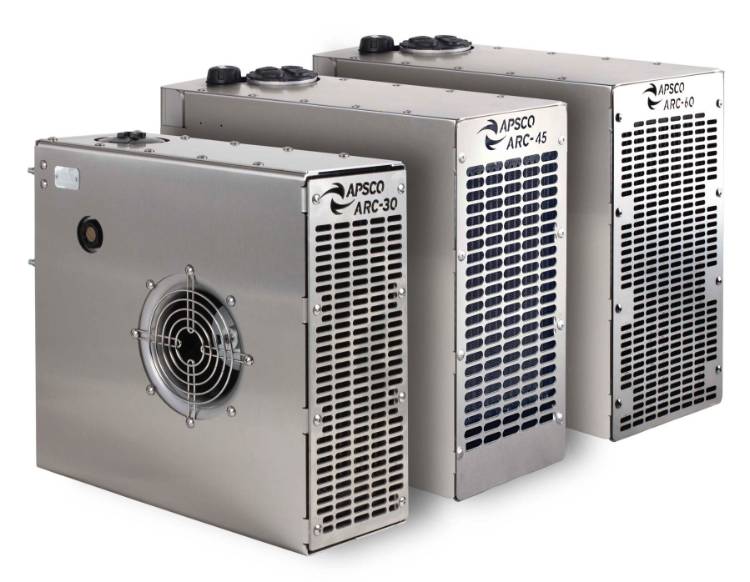

    Excessive heat in your equipment’s mobile transport hydraulic system reduces the efficiency of your system. APSCO’s ARC-30 (30 gpm), ARC-45 (45 gpm), and ARC-60 (60 gpm) hydraulic cooling systems are space efficient solutions providing superior heat rejection that will lower the overall cost of ownership for your equipment.

    APSCO ARC series mobile transport hydraulic coolers were designed to lead the industry in mobile hydraulic fluid heat rejection and compete with well known industry brands that include the Gardner Denver MH series coolers;  the Paragon SL, HF, and HD hydraulic coolers; and the Stac Thermaflow series coolers.

    The basic ARC cooler wet-kit includes cooler • Muncie TG8 series PTO (need your truck transmission model number) • Hydraulic pump • Optional directional control valve is available

    ** Fittings not included. Please see accessories list for available fittings

    Contact us for more information and ordering at 832-639-0440.

    ARC-30 HYDRAULIC OIL COOLER

    • Capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 gpm
    • Slim line or Box. . . . . . . . . . . . . . . . . . . . . . . . . . . Slim
    • Tank Size. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 gallon
    • Suction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SAE-24 ORB Female
    • High Pressure. . . . . . . . . . . . . . . . . . . . . . . . . . . . SAE-16 ORB Female
    • Low Pressure Return. . . . . . . . . . . . . . . . . . . . . . SAE-20 ORB Female
    • Relief Valve. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Adjustable – standard range 500-3000 psi (higher range upon request)
    • Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hydraulic drive 1.2 gpm
    • Drain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Magnetic plug SAE-8 ORB
    • Filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Tank top design with integral breather,
    • 25 psi bypass
    • Filter Element. . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 micron – Element easily serviceable from top
    • Site Glass. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Bulls eye
    • Basic dimensions (LxWxH) . . . . . . . . . . . . . . . . . 20 x 8 x 20 in.
    • Cooler Bypass – Cold Start up . . . . . . . . . . . . . . 60 psi high flow
    • Case Drain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SAE-8 ORB Female
    • Finish. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Stainless exterior brushed finish
    • Gauge Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SAE-4 ORB Female
    • Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 lbs
    • Heat Rejection . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 hp at 30 gpm and 80°F ETD
      ___________________________________________

      ARC-45 HYDRAULIC OIL COOLER
    • Capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 gpm
    • Slimline or Box. . . . . . . . . . . . . . . . . . . . . . Slimline
    • Tank Size. . . . . . . . . . . . . . . . . . . . . . . . . . . 4.25 gallon
    • Back Suction. . . . . . . . . . . . . . . . . . . . . . . . SAE-32 ORB Female
    • Bottom Suction. . . . . . . . . . . . . . . . . . . . . . SAE-32 ORB Female
    • High Pressure. . . . . . . . . . . . . . . . . . . . . . . SAE-20 ORB Female
    • Low Pressure Return. . . . . . . . . . . . . . . . . SAE 20 ORB Female
    • Relief Valve. . . . . . . . . . . . . . . . . . . . . . . . . Adjustable – Standard Range 500-3000 psi (Higher range upon request)
    • Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hydraulic Drive 1.2 gpm
    • Filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Tank top design w/integral breather, 25 psi bypass
    • Filter Element. . . . . . . . . . . . . . . . . . . . . . . 10 Micron, element easily serviceable from top
    • Oil Level Sight Glass. . . . . . . . . . . . . . . . . . Dual Bulls Eye
    • Basic Dimensions (L X W X H) . . . . . . . . . 21 X 10 X 21 inches
    • Cooler Bypass. . . . . . . . . . . . . . . . . . . . . . . Cold Start Up – 60 psi high flow
    • Case Drain. . . . . . . . . . . . . . . . . . . . . . . . . . SAE-8 ORB Female
    • Finish. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304 SS Stainless exterior brushed finish
    • Gauge Port. . . . . . . . . . . . . . . . . . . . . . . . . . SAE-4 ORB Female
    • Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120 lbs (dry)
    • Heat Rejection . . . . . . . . . . . . . . . . . . . . . . 19 Hp at 45 gpm with 80°F exiting temp. differential

    ___________________________________________

    ARC-60 HYDRAULIC OIL COOLER

    • Capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . 60 gpm
    • Slim Line or Box. . . . . . . . . . . . . . . . . . . . Slim
    • Tank Size. . . . . . . . . . . . . . . . . . . . . . . . . . 6 gallon
    • Back Suction. . . . . . . . . . . . . . . . . . . . . . . SAE-32 ORB Female
    • Bottom Suction. . . . . . . . . . . . . . . . . . . . . SAE-32 ORB Female
    • High Pressure. . . . . . . . . . . . . . . . . . . . . . SAE-20 ORB Female
    • Low Pressure Return. . . . . . . . . . . . . . . . SAE 24 ORB Female
    • Relief Valve. . . . . . . . . . . . . . . . . . . . . . . . Adjustable – Standard Range 500-3000 psi (Higher range upon request)
    • Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hydraulic Drive
    • Filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Tank top design w/integral breather, 25psi bypass
    • Filter Element. . . . . . . . . . . . . . . . . . . . . . 10 Micron, element easily serviceable from top
    • Sight Glass. . . . . . . . . . . . . . . . . . . . . . . . . Duel Bulls Eye
    • Basic Dimensions (L X W X H) . . . . . . . . 22 X 12.6 X 22 in.
    • Cooler Bypass. . . . . . . . . . . . . . . . . . . . . . Cold Start Up – 60 psi high flow
    • Case Drain. . . . . . . . . . . . . . . . . . . . . . . . . SAE-8 ORB Female
    • Finish. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Stainless exterior brushed finish
    • Gauge Port. . . . . . . . . . . . . . . . . . . . . . . . . SAE-4 ORB Female
    • Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140 lbs
    • Heat Rejection . . . . . . . . . . . . . . . . . . . . . 28 HP at 60 GPM and 80° ETD

    ** Fittings Not Included. Please See Accessories List for Available Fittings
    The basic ARC cooler wet-kit includes cooler • Muncie TG8 series PTO (need your truck transmission model number) • Hydraulic pump • Optional directional control valve is available
